Aryaka’s edge appliance portfolio, the Aryaka Network Access Point (ANAP), delivers on a virtualized a software-defined edge and branch solution and is part of our SD-WAN and SASE as-a-service solution. The ANAP is included in the services delivery and a key component of our single-pass architecture. The ANAP aggregates multiple WAN connections and provides converged network services including routing, encryption, security, deep packet inspection engine, and traffic management. It also supports redundancy with high-availability configuration options
The ANAP appliance helps enterprises simplify their edge and branch footprint by consolidating networking and security into a single software-defined and cloud-managed device. It eliminates the need for a multitude of separate, function-specific appliances. The ANAP is the on-ramp to Aryaka’s managed global SD-WAN and SASE solutions and integrates advanced networking, application optimization and acceleration, and security functions.

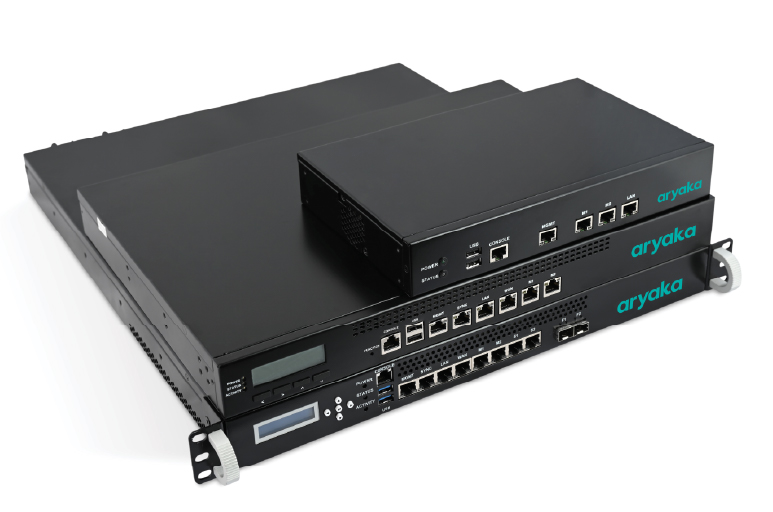

The ANAP portfolio consists of physical and virtual appliances based on an adaptable white box architecture running the industry-standard Linux operating system, which provides built-in virtualization (KVM) and containerization technology to support Virtual Network Functions (VNFs).
Companies of all sizes can deliver enterprise-class connectivity to remote locations – which often lack qualified IT personnel – within less than 48 hours by leveraging the ANAP’s ZTD (Zero Touch Deployment) model. ZTD means we will ship appliances to any location without the need for a customer’s technician to manually configure the device beforehand. The Aryaka managed network and security services solution helps reduce enterprises CAPEX and OPEX of their WAN and edge/branch infrastructure while delivering on superior application performance and optimal cloud connectivity.
| Deployment Simplicity and Integrated Design | The ANAP comes pre-configured and is easily implemented with a zero-touch deployment model. |
| Software-defined Solution | The ANAP implements networking, application optimization and security services as software functions, built on top of a hardened Linux operating system. It avoids the costly built-in obsolescence of custom architectures. |
| Built-in SD-WAN | The ANAP is an integral component of Aryaka’s network services. It helps enterprises leverage any last-mile transport (MPLS, hardened Internet) and can leverage the high-quality Aryaka core network to attain better than MPLS quality-of-service levels. |
| HybridWAN | support providing Aryaka L2 & L3 Core, MPLS peering, site-to-site Internet and public Internet path options. |
| Built-in Cloud Network Support | Azure Virtual WAN and AWS Transit Gateway support. |
| Built-in Security | The ANAP implements a stateful L3/L4 Firewall, DPI-L7 Firewall to thwart attacks to the branch. It also implements branch traffic segmentation: corporate traffic is kept strictly separate from other types of traffic such as DMZ or Guest WiFi traffic. The ANAP also supports NFV-based virtual firewalls from Tier-1 security vendors. |
| Redundancy | Support for link (dual ISP links) and device (VRRP) redundancy delivers on very high availability requirements (see illustration). Fail-to-wire is supported for inline mode |
| Better User Experience | Deterministic, predictable performance for applications residing in the data center or in the cloud. |
| Multi-Tenant Solution | Aryaka’s ANAP supports up to 32 tenants via micro-segmentation. |
| Flexible Branch Deployment | options including inline, simple routed, hybrid and edge routed mode. |
| Greater Agility | Faster, easier deployment and operation of of your managed SD-WAN and SASE, with greater performance using less bandwidth. Add new revenue generating services in minutes not months. |
| ANAP 1500 | ANAP 2500/2600 | ANAP 3000 | ANAP 10000 | |
|---|---|---|---|---|
| Bandwidth | Up to 150Mbps | Up to 650Mbps | Up to 1 Gbps | Up to 3Gbps |
| Interface type | Copper | Copper | Copper/Fiber | Copper/Fiber |
| NFV Capable | No | No/Yes | Yes | Yes |
| QoS / WAN | Yes | Yes | Yes | Yes |
| Optimization | Yes | Yes | Yes | Yes |
| Routing | Yes | Yes | Yes | Yes |
| Edge Security | Yes | Yes | Yes | Yes |
| Cloud Security | Yes | Yes | Yes | Yes |
| Connectors | Yes | Yes | Yes | Yes |
| Monitoring | Yes | Yes | Yes | Yes |
| Recommended for | Small Sites | Medium Sites | Large Sites | Large/X-Large Sites |
Aryaka is the leader and first to deliver Unified SASE as a Service, the only SASE solution designed and built to deliver performance, agility, simplicity and security without tradeoffs. Aryaka meets customers where they are on their unique SASE journeys, enabling them to seamlessly modernize, optimize and transform their networking and security environments. Aryaka’s flexible delivery options empower enterprises to choose their preferred approach for implementation and management. Hundreds of global enterprises, including several in the Fortune 100, depend on Aryaka for cloud-based software-defined networking and security services. For more on Aryaka, please visit www.aryaka.com.
